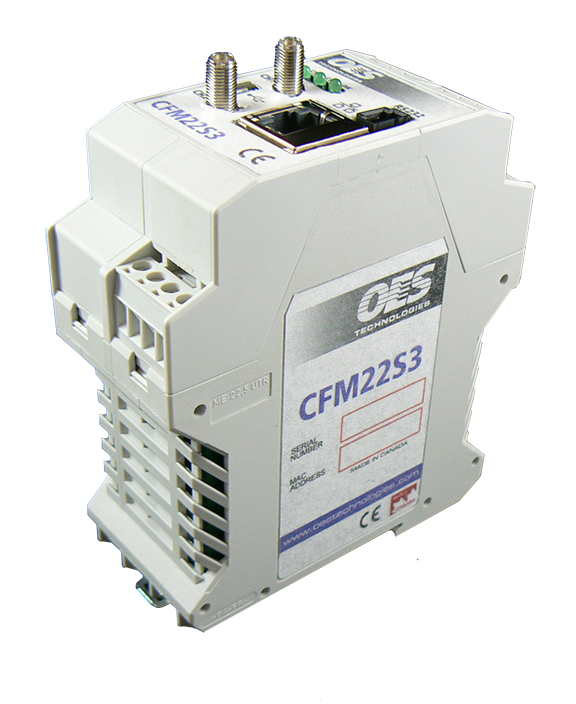

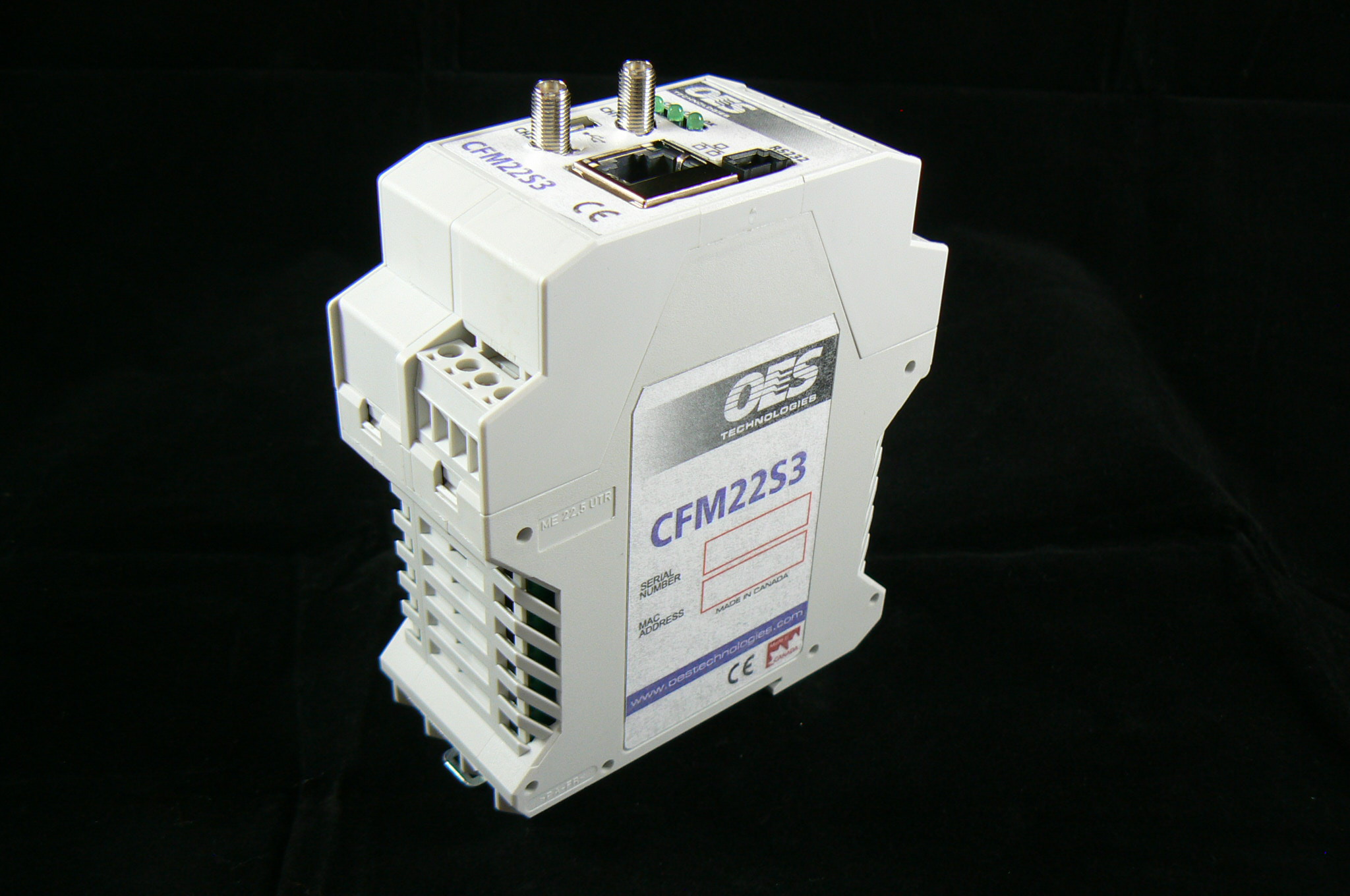

CFM22S3
A modular two-channel CFM supplied with “ForceView 3” User Interface software.
Ideal for machines with two presses or combined with the CFM21S3 when there are more than 3 presses on automated cutting machines.
Single ForceView 3 interface up to 6 presses per machine.
DIN rail mounted in control cabinet with no interaction from operator needed.
100% inspection with advanced crimp force algorithms delivering the highest level of crimp defect detection.
User-friendly software interface; no keypads or displays.
Specifications
Dimensions | 99.0 x 4.25 x 113.26mm (3.89” x 1.78” x 4.46”) |
---|---|
Supply voltage | 24VDC |
Communications | 1 Ethernet RJ45, 1 USB 2.0, 1 RS232 |
Sensor inputs | Piezo strain, Piezo force ring, PBT force sensor |
Inputs | 4 |
Outputs | 6 |
Mounting | DIN rail |
Analysis | CDA |
Operating temperature | 18 to 50C, 60 to 120F |
Adaptable to a wide range of automatic wire processing machines.Compatible with a variety of machines including those manufactured by:
- Schaefer
- Schleuinger
- Artos
- Komax
- THB
- Kingsing
- Airstorm
For a list of all compatable machines and manufactures email technologies@oes-inc.com.
Two year warranty from date of purchase.
For questions related to warranty, email technologies@oes-inc.com.
