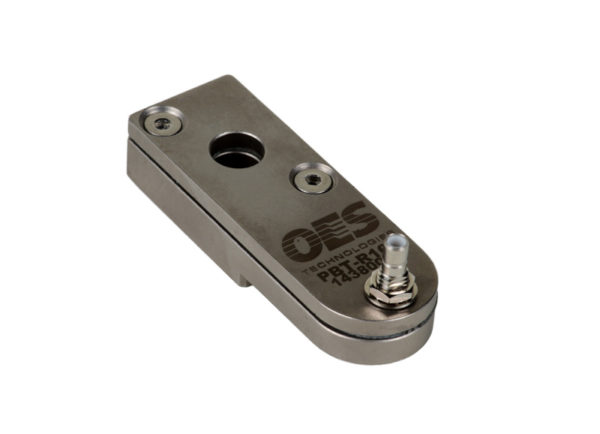

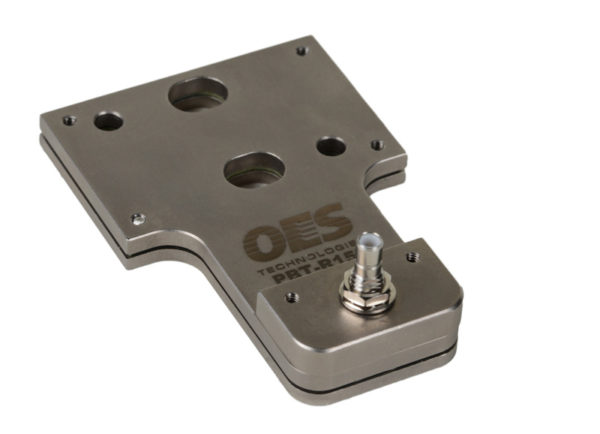

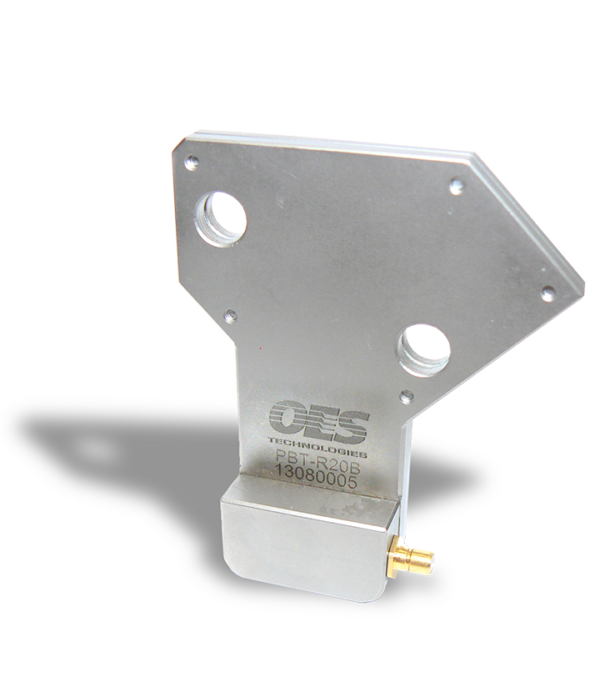

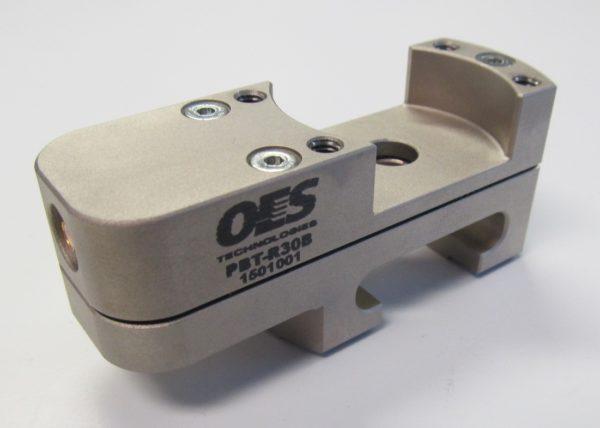

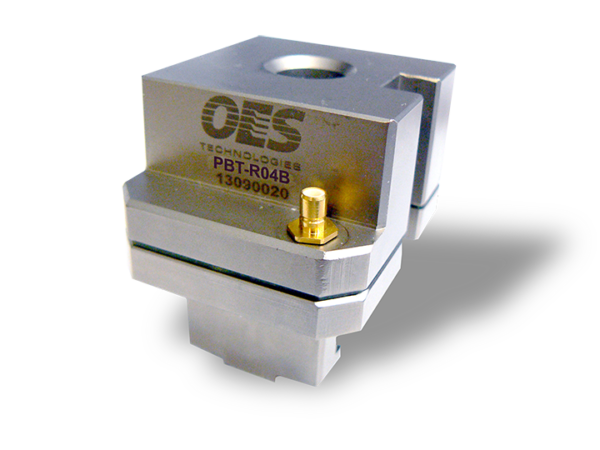

PBT Sensors

Exceptional sensing performance. Specifically designed for Wire harness industry and small gauge wire by OES.

  • Up to 10 times the resolution of current sensing methods for better defect detection.
  • Proven more sensitive then ceramic or quartz piezoelectric sensors.
  • The PBT sensing element is mounted directly over the crimping tool for optimum sensor performance and eliminating possibility of “shunting” of the force signal.

A true plug and play

  • The PBT sensor can be designed as a substitute machine component.
  • The PBT sensor life expectancy exceeds 10 million cycles under normal use.
  • The PBT sensor has a 4X over-range capacity of the calibrated force range. This ensures sensor survivability and reliability for varying operational conditions.

Specifications

Dimensions

Machine specific

Mounting

Machine specific

Operating temperature

15 to 50C, 60 to 120F

Measurement range

0.4 kN to 100 kN

Absolute maximum force

100 kN

Electrical connector

SMB Coaxial Jack

PBT Force Sensors work our complete line of crimp force monitors (CFM) and process variation monitors (PVM).

  • Crimping
  • Assembly
  • Clinching
  • Toxing
  • Welding
  • Riveting
  • Press Fitting

One year warranty coverage from date of purchase.

For questions related to warranty, email technologies@oes-inc.com.
