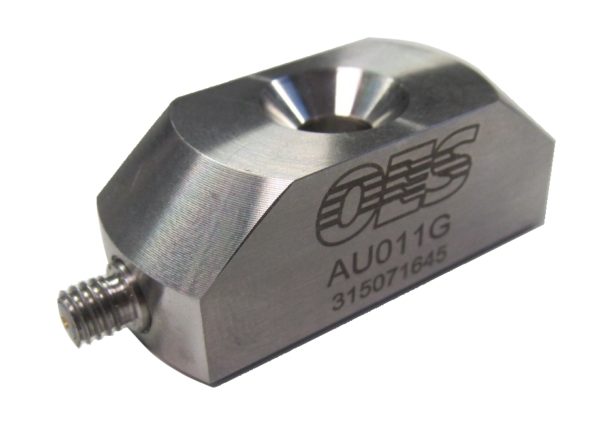

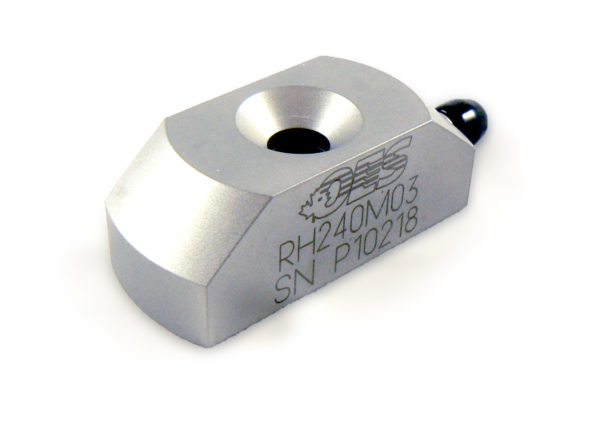

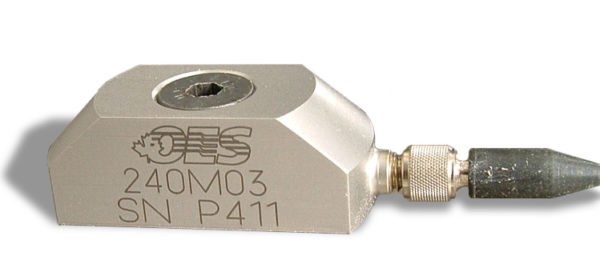

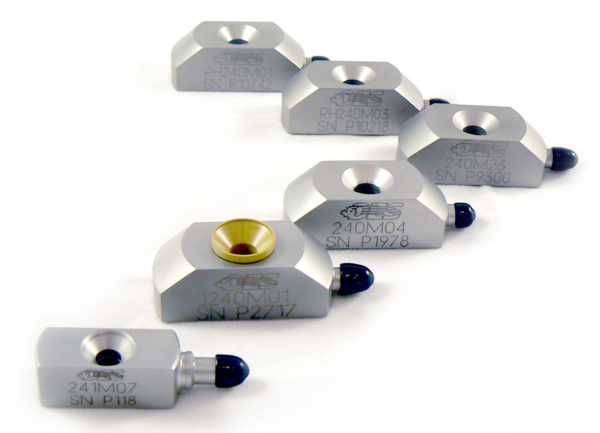

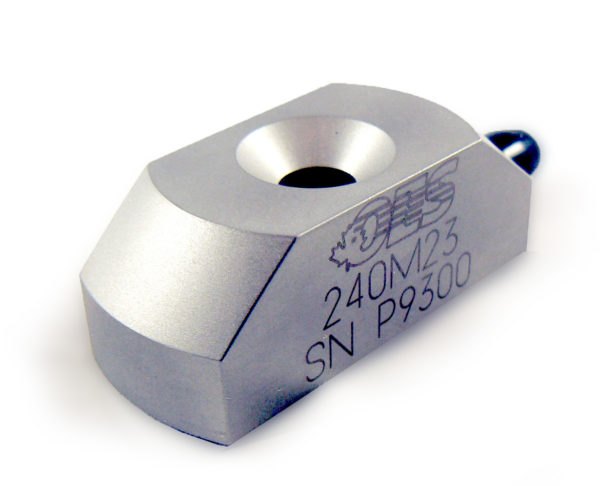

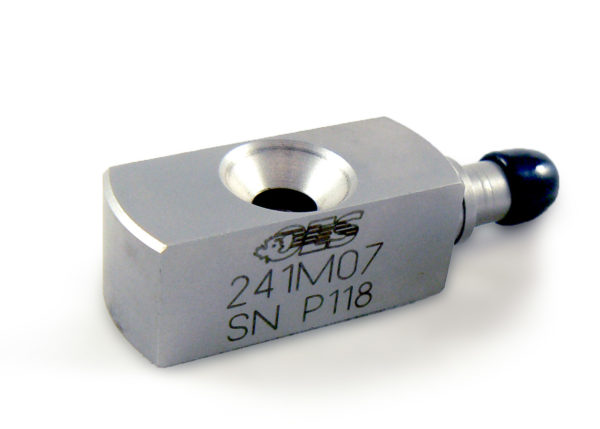

Strain Sensors
Piezo strain sensors were introduced to the industry by OES and are a standard for wire processing applications.
- Dynamic measurement sensor providing a high level of stability, accuracy and reliability
- High performance and cost effective sensor option with simple installation
- Provides an output in milli-volts per micro strain and can be scaled to engineering units as required
- Suited for applications ranging from 2 to 300 ton
Specifications
Dimensions | Machine specific |
---|---|
Mounting | Machine specific |
Operating temperature | 15 to 50C, 60 to 120F |
Measurement range | 5 mv/µstrain to 100 mv/µstrain |
Absolute maximum force | 1 ton to 300 ton |
Electrical connector | 10-32UNC |
Strain Sensors are well suited for applications ranging from 2 to 300 ton including:
- Forming
- Cold Heading
- Stamping
- Mandrel Bending
- Crimping
- Assembly
- Clinching
- Toxing
- Welding
- Riveting
- Press Fitting
- Cutting
- Drilling
- Tapping
- Machining
- Thread Rolling
One year warranty coverage from date of purchase.
