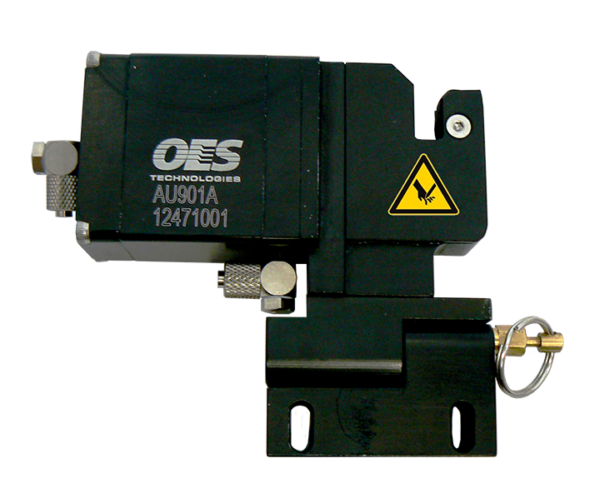

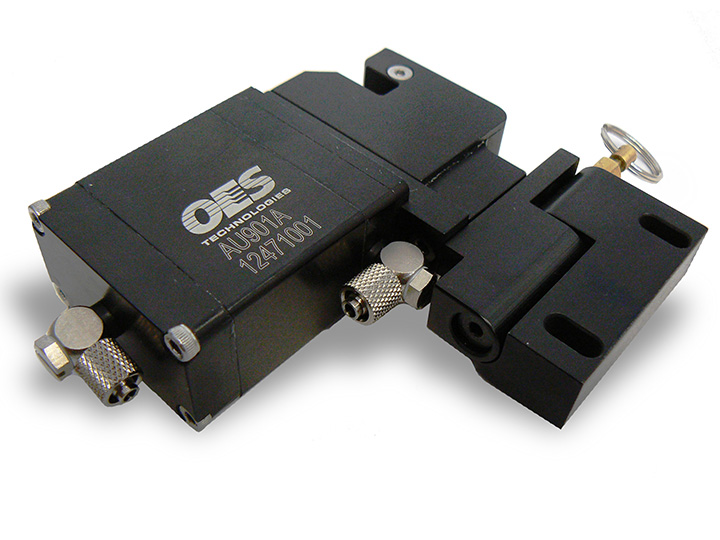

A cost-effective proven defect chopper system.

Eliminates risk of human error in mixing good and bad wire crimp circuits.

Can be configured to grip the circuit for secondary inspection.

Controlled by the CFM chopper control interface.

Quick tooling changes and simple installation.


Supply voltage


Operating temperature

15 to 50C, 60 to 120F

Maximum operating air pressure

100 psi

Minimum operating air pressure

80 psi

Maximum cutting capacity at 100 psi

6.33mm² [AWG 6]

Maximum cutting capacity at 80 psi

5.26mm² [AWG 10]

WireChop is suitable for both bench presses and automatic machines.

Two year warranty from date of purchase.

For questions related to warranty, email technologies@oes-inc.com.
