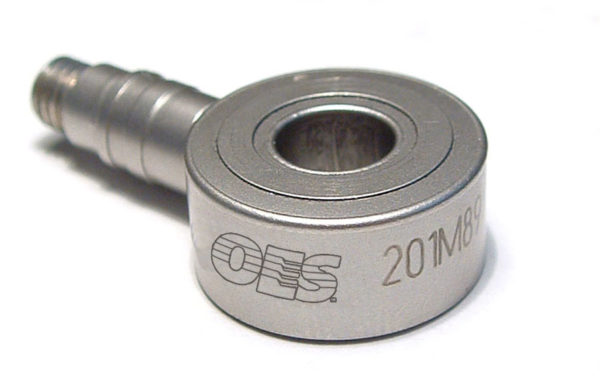

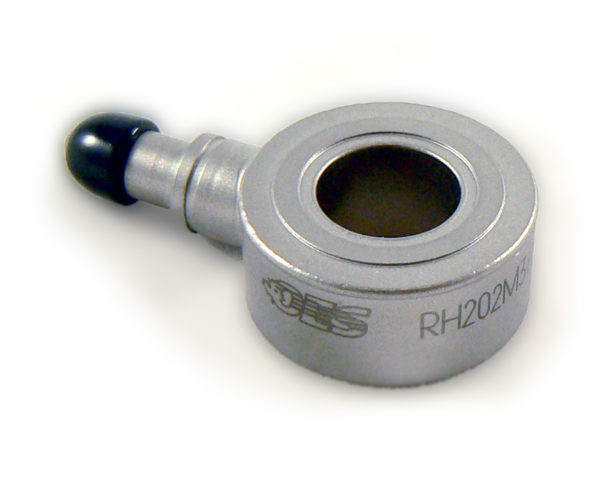

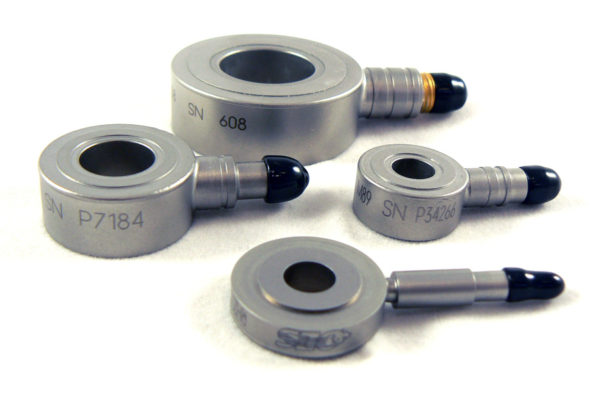

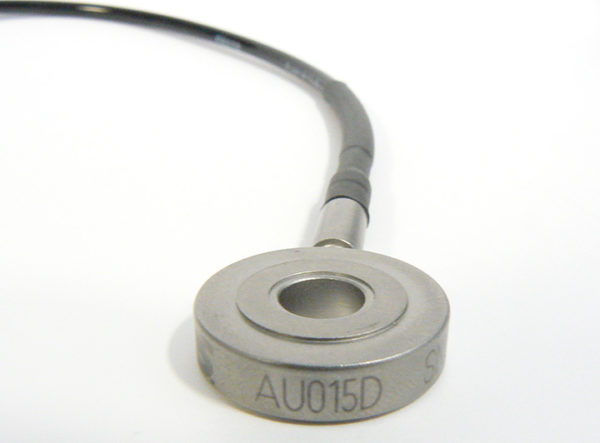

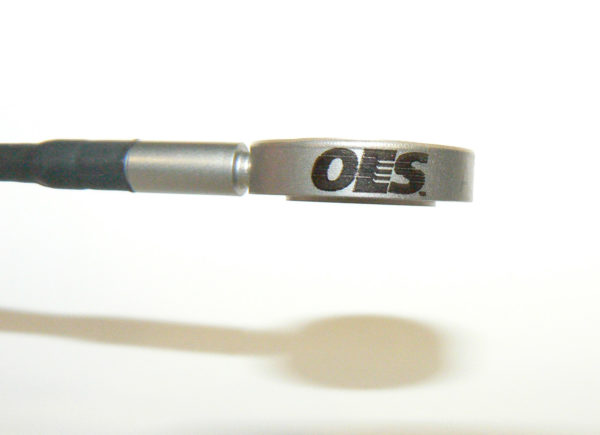

Ring Sensors
High-resolution output for compression or tension monitoring applications.
High level of stability and accuracy.
Mechanically integrated into the press ram or base plate for in-line sensing of the force during the cycle.
Specifications
Dimensions | Machine specific |
---|---|
Mounting | Machine specific |
Operating temperature | 16 to 50C, 60 to 120F |
Measurement range | 2 kN to 100 kN |
Absolute maximum force | 89 kN |
Electrical connector | 10-32UNC |
Ring Sensors are well suited for applications related to:
- Wire Processing
- Baffle Stuffing
- End Forming
One year warranty coverage from date of purchase.
