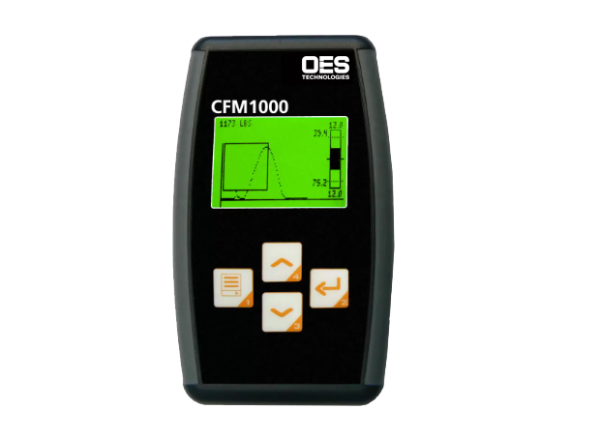

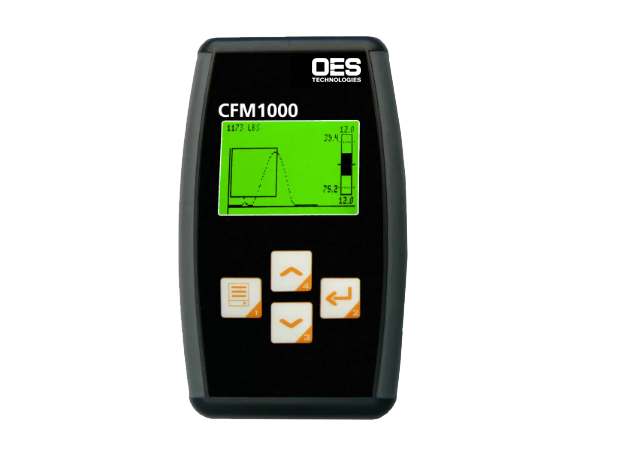

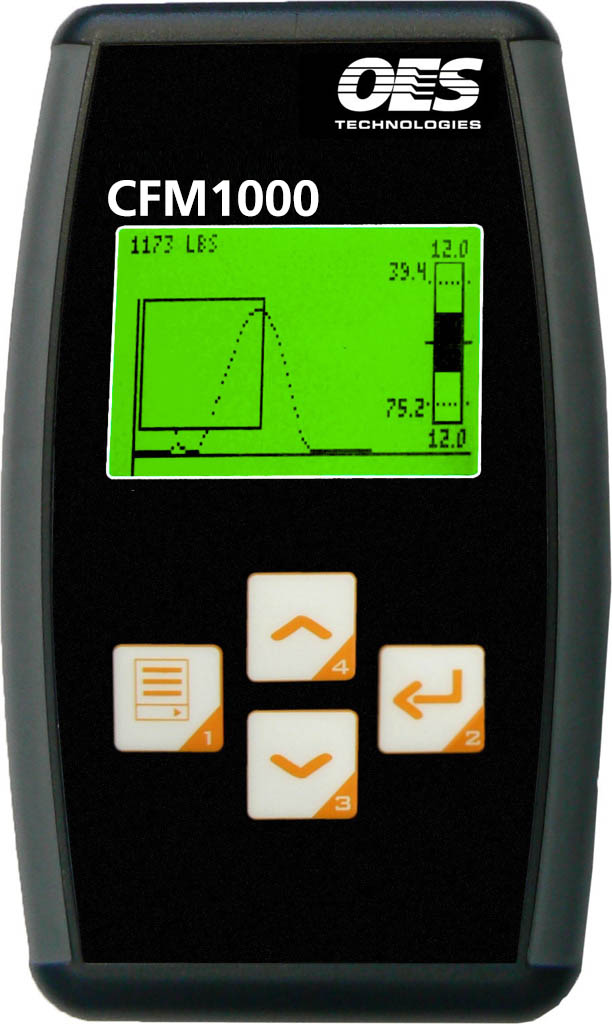

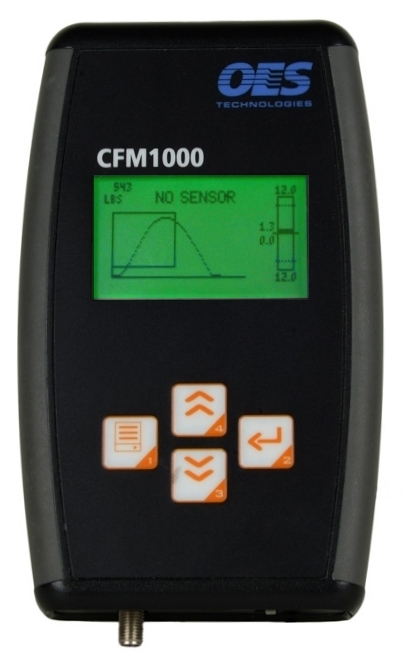

CFM1000

$1,624.00 USD

Quantity:

Most compact monitor on the market.

One-channel crimp force monitor supplied with ForceView 2 user interface software.

High process reliability with 100% inspection. A great retrofit option for presses already in operation.

Designed to connect up to 16 units for traceability.

3 different color screens and audible buzzer for operator visual and sound support.

Ideal for small manufacturers and companies looking for a cost effective CFM solution to meet standards.

Specifications

Dimensions

89.0 [3.50] x 147.2 [5.80] x 25.0 [.98]

Supply voltage

24VDC ext. adapter, 100-240VAC 50-60Hz 1.0A

Communications

USB

Sensor inputs

Piezo strain, Piezo force ring, PBT force sensor

Inputs

1

Outputs

2

Display

3-color LCD graphic

Mounting

Universal mounting bracket

Analysis

Area

Operating temperature

15 to 50C, 60 to 120F

Adaptable to a wide range of bench presses.

Two year warranty from date of purchase.

For questions related to warranty, email technologies@oes-inc.com.
