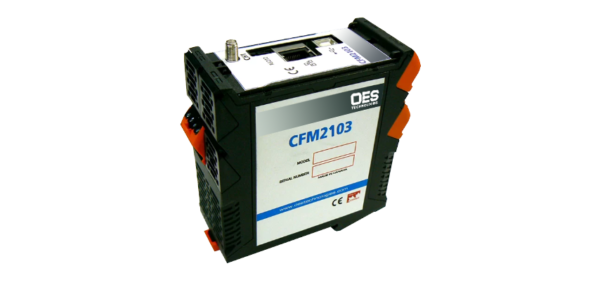

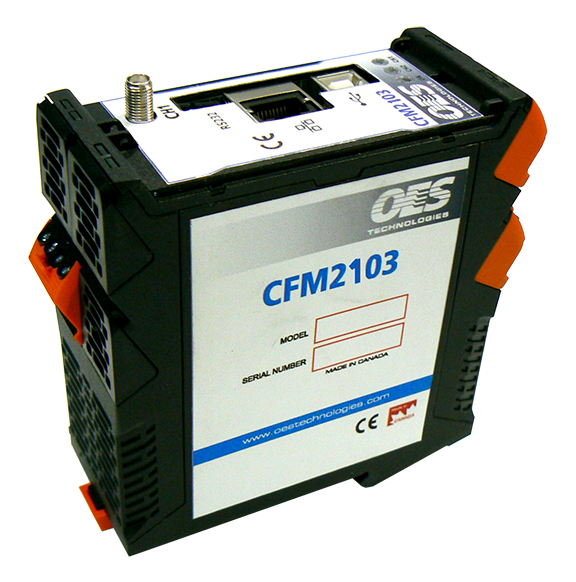

CFM2103

A modular one-channel CFM supplied with ForceView 3 user interface software.

Flexible, industry standard unit. Can be integrated onto bench press controls or complicated automated cutting machines.

DIN rail mounted in control cabinet with no interaction from operator needed.

100% inspection with advanced crimp force algorithms delivering the highest level of crimp defect detection.

User-friendly software interface; no keypads or displays.

Specifications

Dimensions

109.30 x 45 x 113.39mm (4.3” x 1.77” x 4.47”)

Supply voltage

24VDC

Communications

1 Ethernet RJ45, 1 USB 2.0, 1 RS232

Sensor inputs

Piezo strain, Piezo force ring, PBT force sensor

Inputs

2

Outputs

3

Mounting

DIN rail

Analysis

CDA

Operating temperature

15 to 50C, 60 to 120F

Adaptable to a wide range of automatic wire processing machines.

Two year warranty from date of purchase.

For questions related to warranty, email technologies@oes-inc.com.
