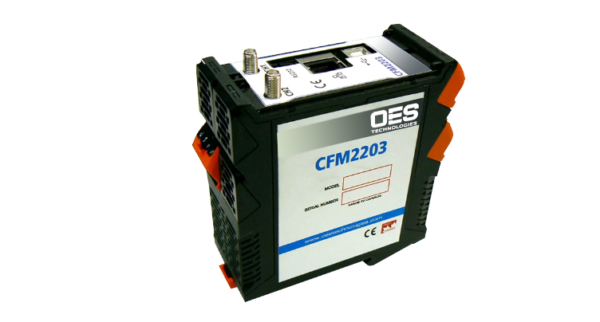

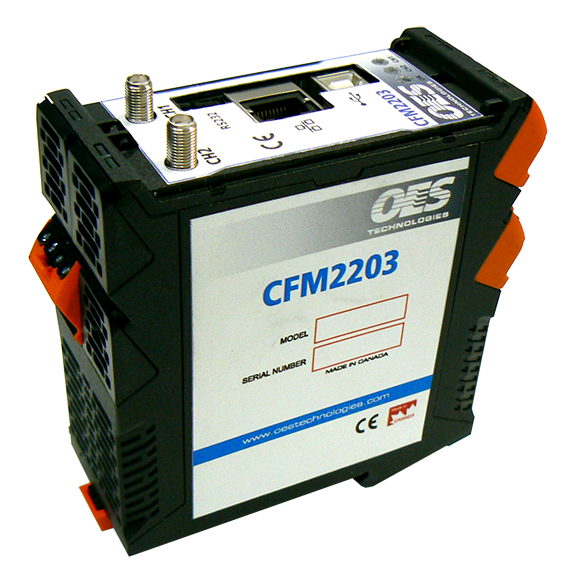

CFM2203

A modular two-channel CFM supplied with ForceView 3 user interface software.

Ideal for machines with two presses or combined with the CFM2103 when there are more than 3 presses on automated cutting machines.

Single ForceView 3 interface up to 6 presses per machine.

DIN rail mounted in control cabinet with no interaction from operator needed.

100% inspection with advanced crimp force algorithms delivering the highest level of crimp defect detection.

User-friendly software interface; no keypads or displays.

Specifications

Dimensions

109.30 x 45 x 113.39mm (4.3” x 1.77” x 4.47”)

Supply voltage

24VDC

Communications

1 Ethernet RJ45, 1 USB 2.0, 1 RS232

Sensor inputs

Piezo strain, Piezo force ring, PBT force sensor

Inputs

4

Outputs

6

Mounting

DIN rail

Analysis

CDA

Operating temperature

16 to 50C, 60 to 120F

Adaptable to a wide range of automatic wire processing machines.

Two year warranty from date of purchase.
