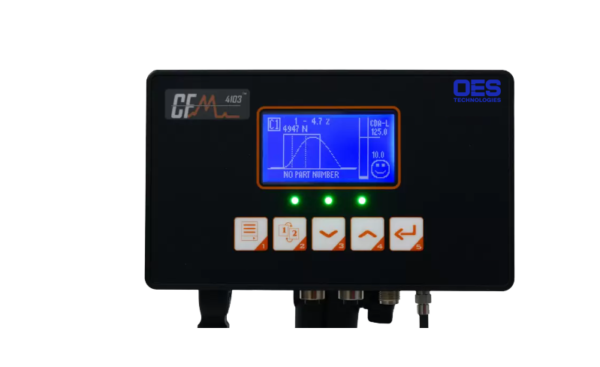

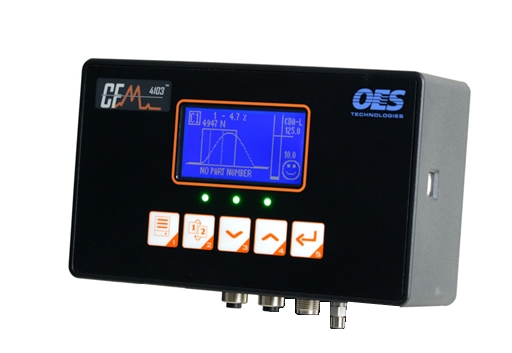

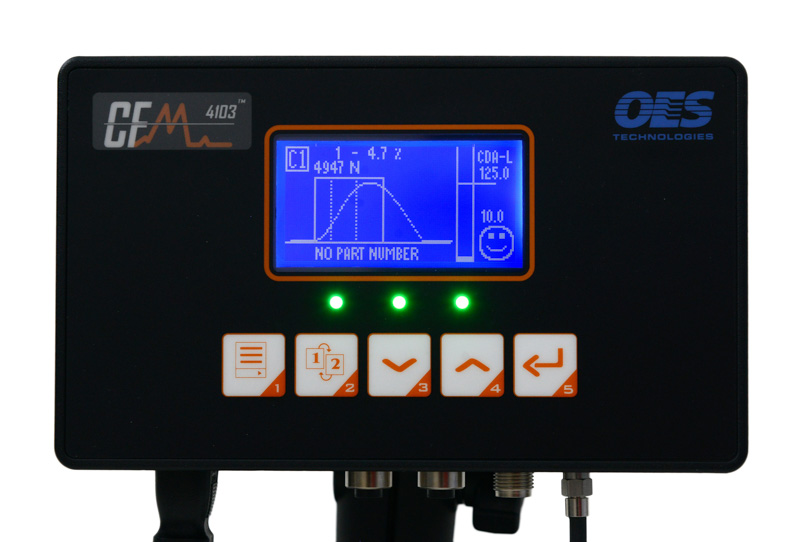

CFM4103

A robust and reliable one-channel CFM.

Third generation proven wire crimp analysis with 100% traceability

  • The system captures the crimp force signature over time, and compares this signature to the reference signature using OES’s patented CDA algorithm
  • 100% production traceability when connected to ForceView 3
  • Stores data for playback or export into production and quality reports

Simple Connectivity

  • Connect with plant-wide network via Ethernet

Direct Machine Control

  • Interfaces with press control to stop the crimping when the process signature moves outside of the tolerance limits
  • Interface with chopper equipment

Specifications

Dimensions

114.30 x 190.50 x 63.50mm (4.5” x 7.5” x 2.5”)

Supply voltage

24VDC int. adapter, 100-240VAC 50-60Hz 4.0A

Communications

3 Ethernet RJ45, 1 USB 2.0

Sensor inputs

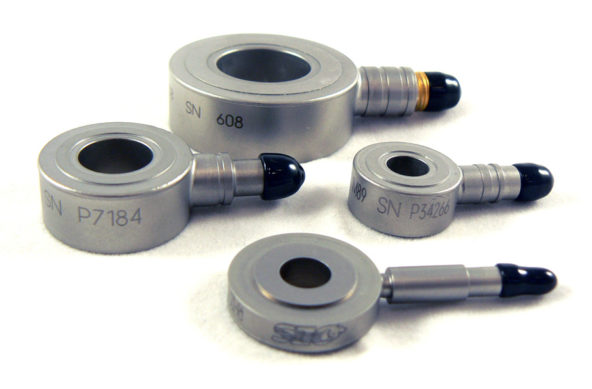

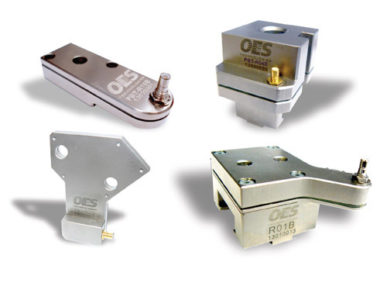

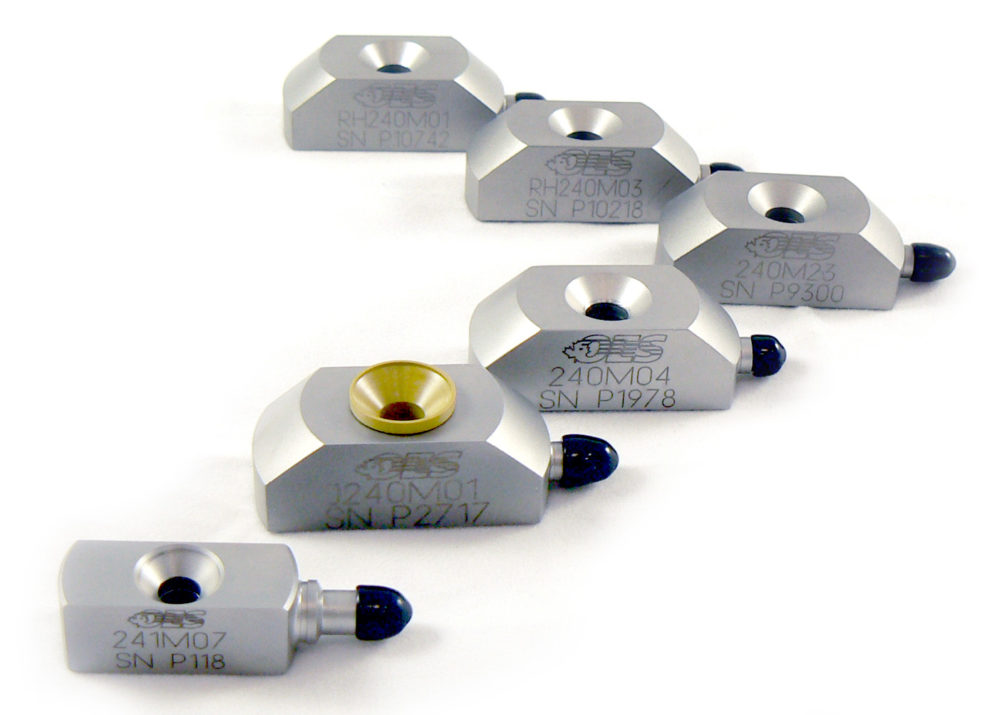

Piezo strain, Piezo force ring, PBT force sensor

Inputs

2

Outputs

4

Display

LCD backlit screen

Mounting

Universal mounting bracket

Analysis

CDA

Operating temperature

20 to 50C, 60 to 120F

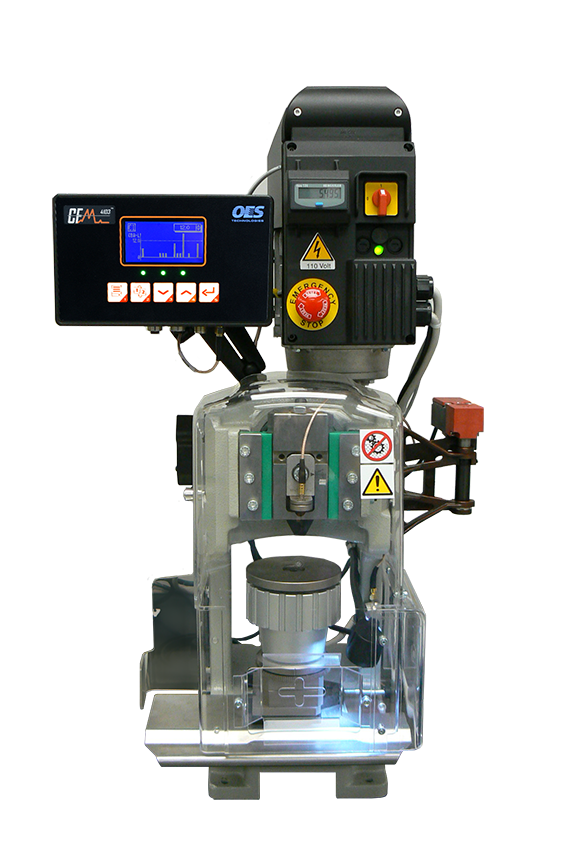

Adaptable to a wide range of bench presses and automatic machines.

Two year warranty from date of purchase.

For questions related to warranty, email technologies@oes-inc.com.
