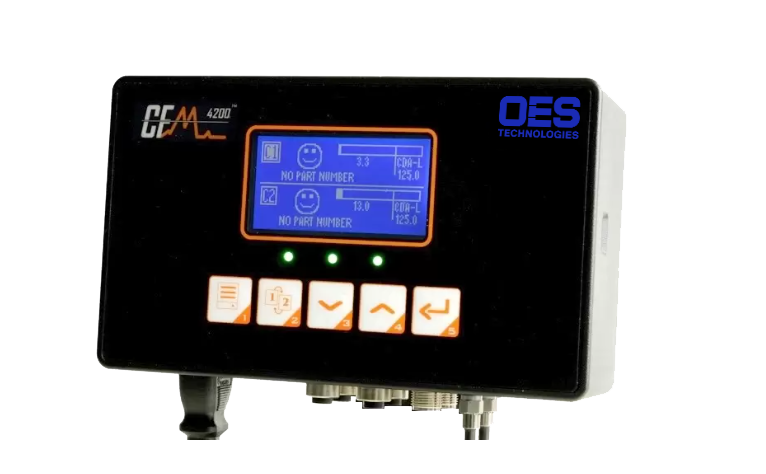

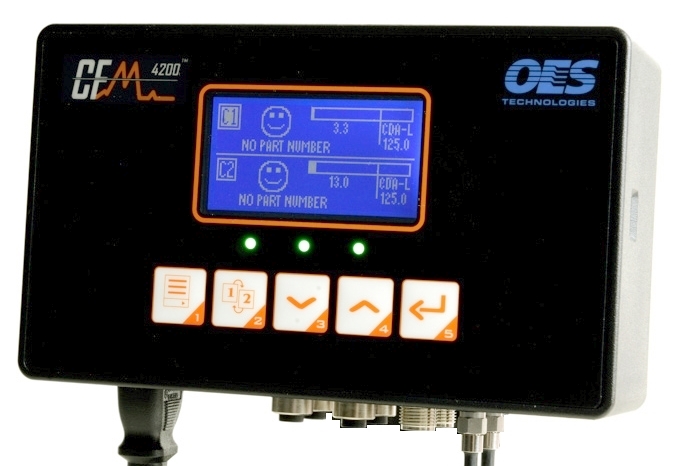

CFM4200
Ideal retrofit option for presses in operation.
A two-channel crimp force monitor supplied with ForceView 2 user interface software.
Designed for use on automatic wire processing machines and has manual adjustments of tolerances and very flexibility.
High process reliability with 100 % inspection and designed to connect up to 16 units for traceability.
Ideal for small manufacturers and companies looking for a cost effective CFM solution to meet standards.
Specifications
| Dimensions | 114.30 x 190.50 x 63.50mm (4.5” x 7.5” x 2.5”) |
|---|---|
| Supply voltage | 24VDC int. adapter, 100-240VAC 50-60Hz 4.0A |
| Communications | 2 Ethernet RJ45, 1 USB 2.0 |
| Sensor inputs | Piezo strain, Piezo force ring, PBT force sensor |
| Inputs | 6 |
| Outputs | 8 |
| Display | LCD backlit screen |
| Mounting | Universal mounting bracket |
| Analysis | Area and Peak |
| Operating temperature | 19 to 50C, 60 to 120F |
Adaptable to a wide range of bench presses and automatic machines.
Two year warranty from date of purchase.
