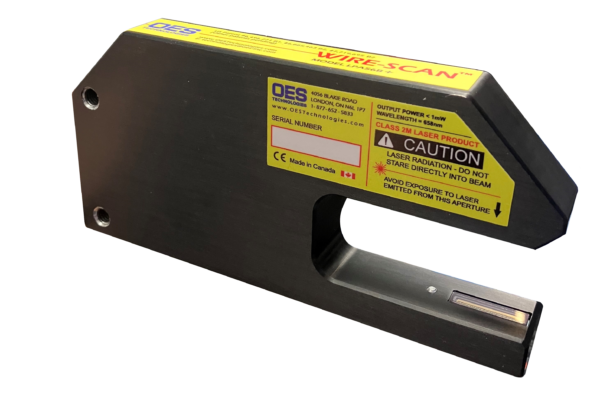

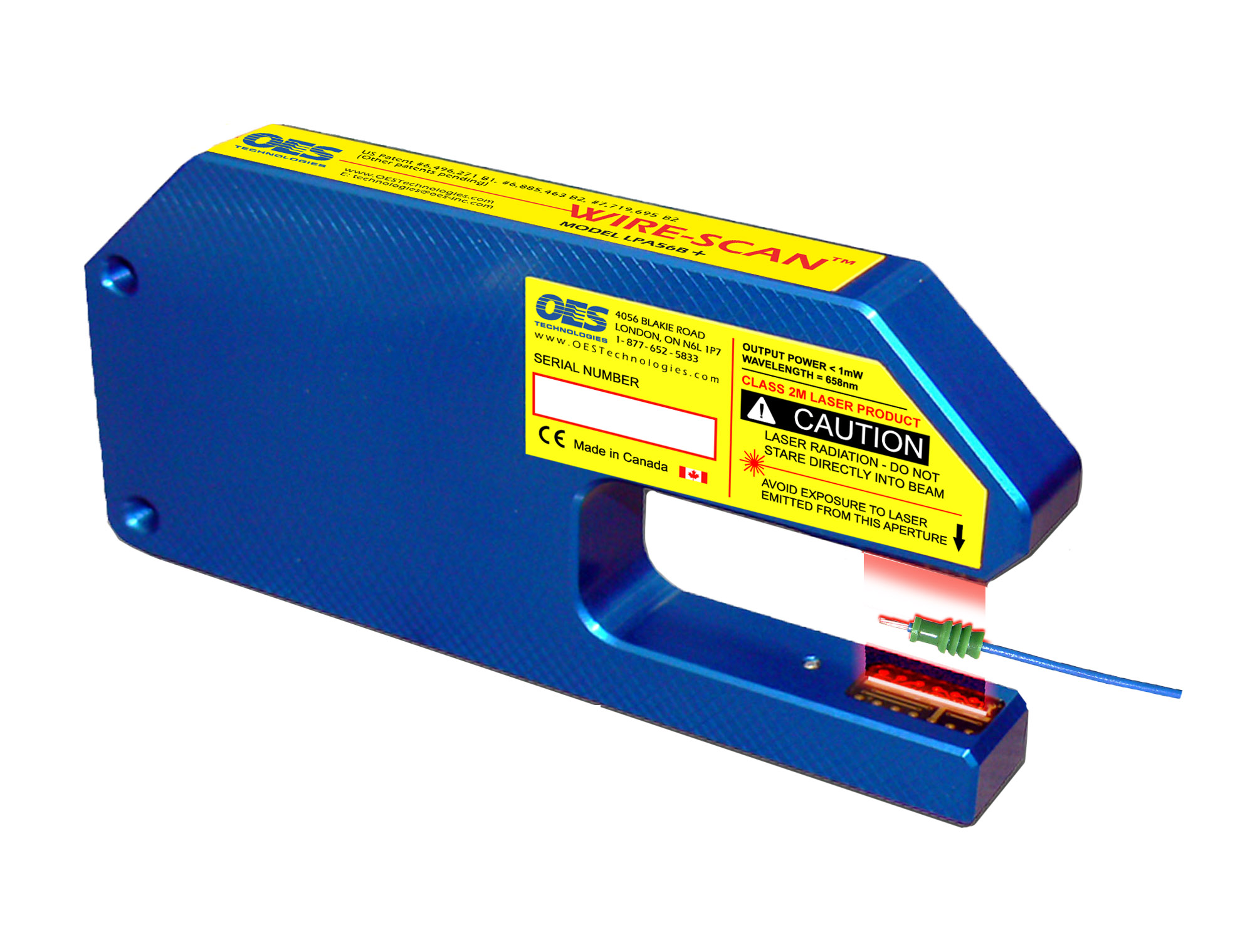

LPA56B

100% in process seal and strip inspection.

  • 16 mm inspection window length
  • Detects common seal insertion defects such as missing seal, reversed seal, skewed seal and seal position
  • Detects common strip defects such as high/low insulation shoulder, pulled strand, splayed strands, and conductor mass28 mm inspection window length

100% Traceability with operator interface software WireScan™.

High resolution image profile.

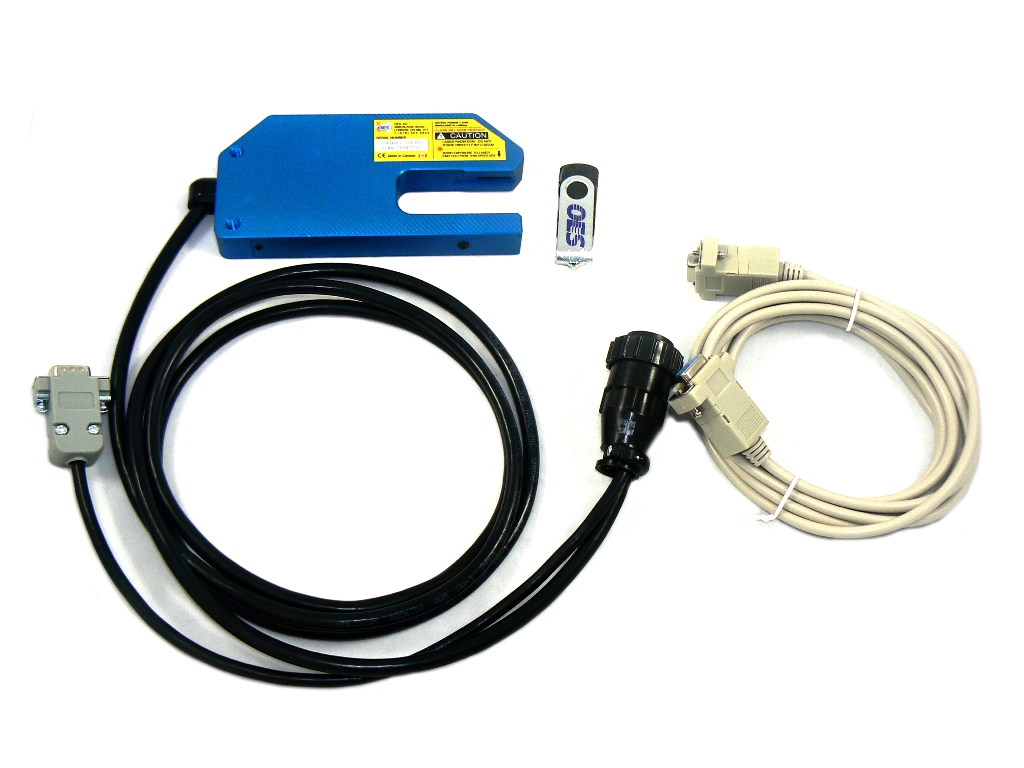

Designed for integration onto existing and new wire processing equipment.

Specifications

Dimensions

18.93 x 146 x 71.5mm (0.75” x 5.75” x 2.81")

Supply voltage

24VDC ext. adapter, 100-240VAC 50-60Hz 1.0A

Communications

1 RS232

Inputs

2

Outputs

2

Operating temperature

15 to 50C, 60 to 120F

Laser wavelength

658 nm

Laser class

2M

Insection window

16 mm (0.63”)

Resolution – length

0.12 mm (0.047”)

Resolution – width

0.192 mm @ 10 meters/second,0.038 mm @ 2 meters/second

Wire speed range

0.5 – 14 meters/second

Typical wire size

1.31 mm2 – 0.05 mm2(16 – 30 AWG)

Typical seal diameter

2-10 mm (0.079” – 0.390”)

For integration on automatic wire processing machines.

Two year warranty from date of purchase.

For questions related to warranty, email technologies@oes-inc.com.
