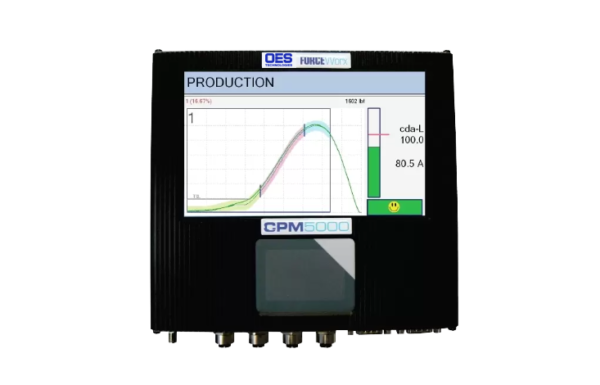

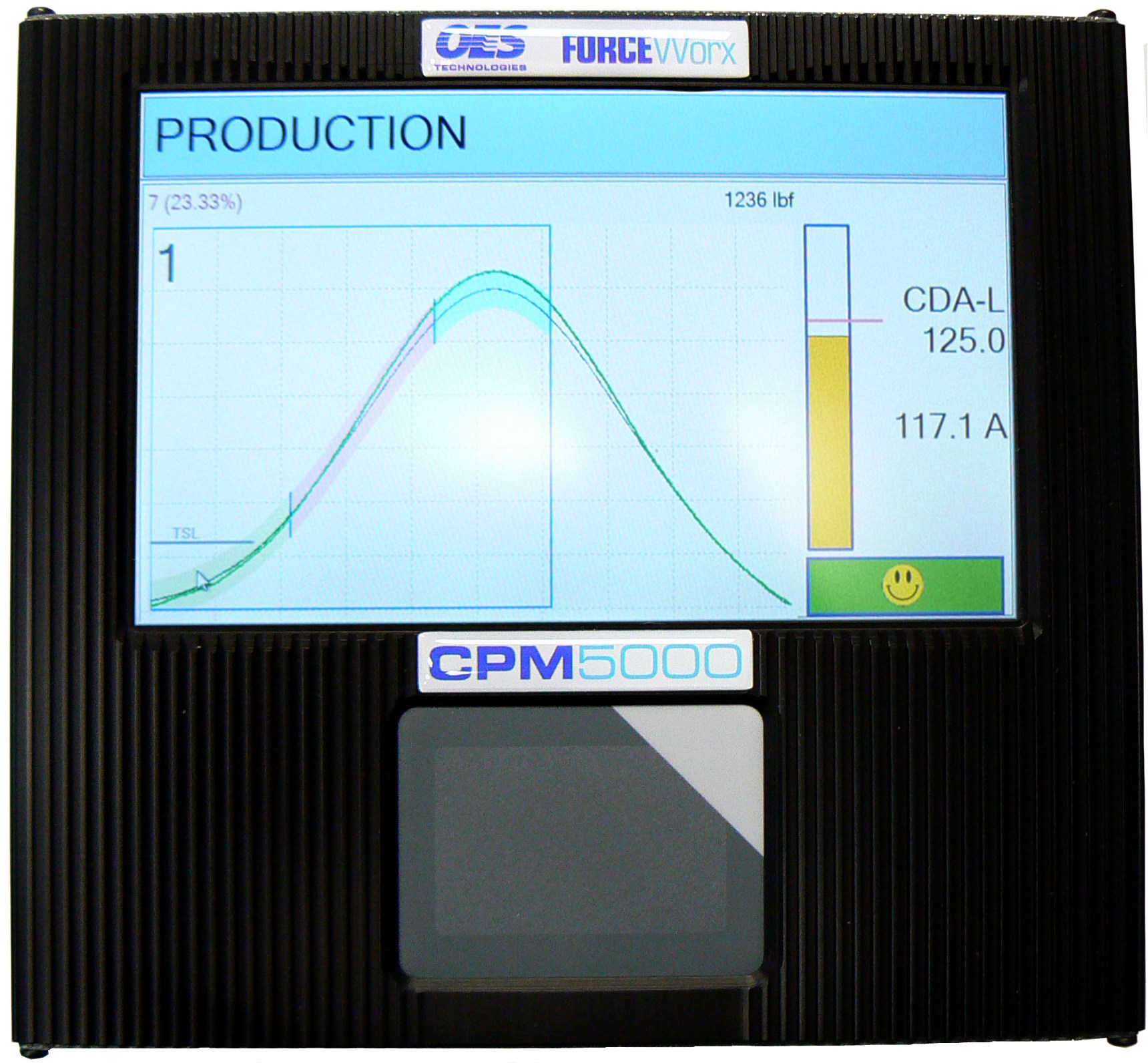

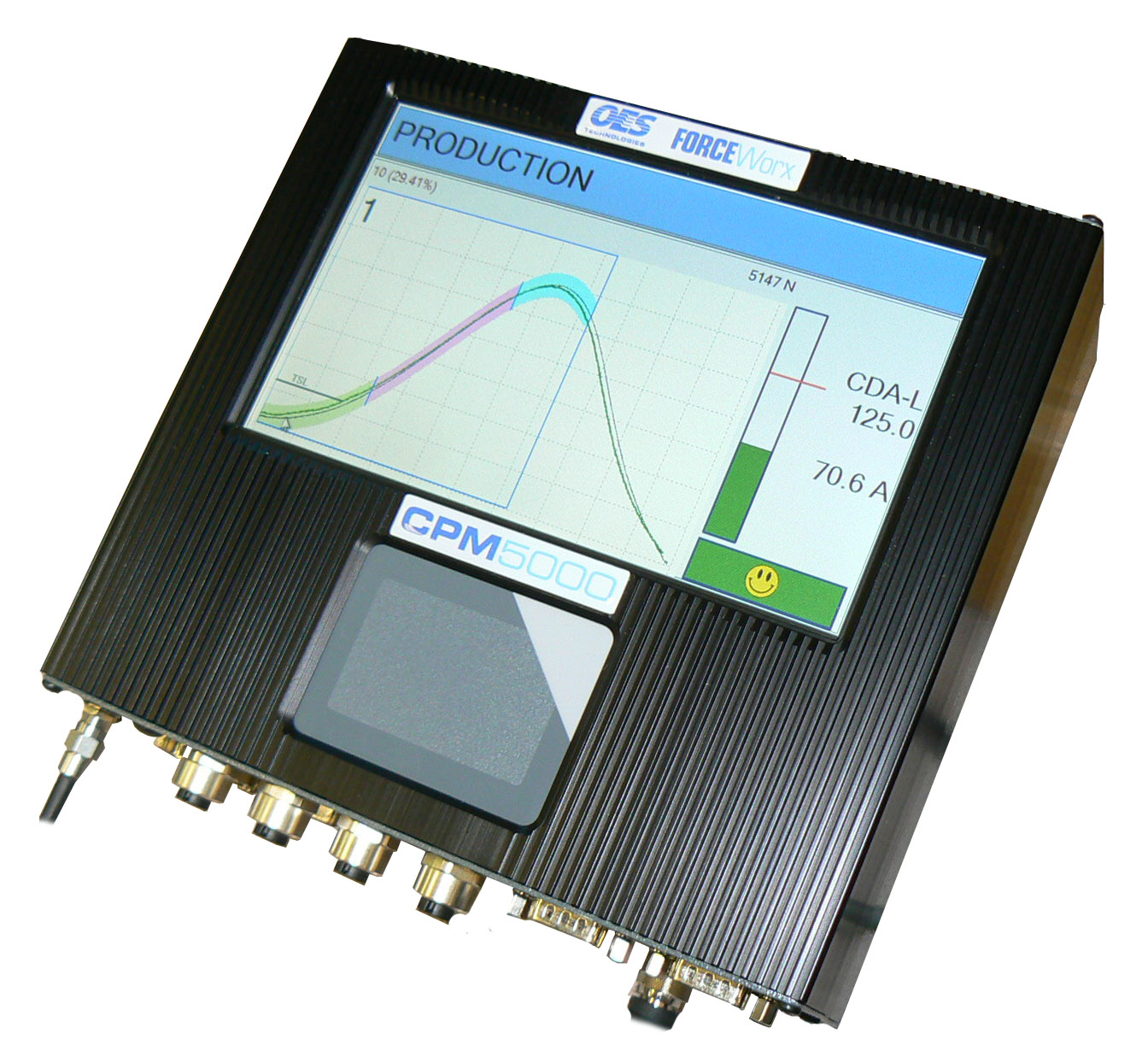

CPM5000

$4,415.00 USD

Quantity:

The most comprehensive and flexible crimp monitor on the market today. A reliable crimp process monitor supplied with ForcePak user interface software.

Configurable for one or two channels.

Configurable for many different sensor types including voltage and IEPE standard sensors.

Proven performance with 100% traceability

  • Integrated automatic target recalculation (ATR) tracks the process trend and further optimizes the CPM5000 for optimal performance and defect detection while minimizing unnecessary scrap
  • Unlimited number of parameters for critical terminal wire combinations can be optionally stored by part number and are easily recalled through the touch screen interface
  • Optional bar code scanner provides further error proofing and automation of the changeover process reports
  • Every crimp signature is captured into the Crimp Data Management System

Simple Connectivity

  • Can operate as a standalone system or can be connected to an existing client network
  • Optionally connecting to an excising system allows for remote monitoring and management of an unlimited number of CPM5000 crimp process monitors

High Security

  • Supports multiple users each with a unique password and access permissions

QPM Option

  • OES QPM System brings a level of automation, efficiency, and assurance of quality to the plant floor that is unsurpassed in the industry

Specifications

Dimensions

185 x 198 x 70mm (7.28” x 7.80” x 2.75”)
Supply voltage

24VDC ext. adapter, 100-240VAC 50-60Hz 1.0A
Communications

2 Ethernet RJ45, 2 USB 2.0, 2 RS232
Sensor inputs

Piezo strain, Piezo force ring, PBT force sensor, Voltage
Inputs

4
Outputs

6
Display

7” colour touch screen
Mounting

Universal mounting bracket
Analysis

CDA
Operating temperature

22 to 50C, 60 to 120F

CFM5000 is adaptable to a wide range of bench presses and automatic machines. Suited for applications related to:

  • Crimping
  • Cold Heading
  • Press Fit

Two year warranty from date of purchase.

For questions related to warranty, email technologies@oes-inc.com.
