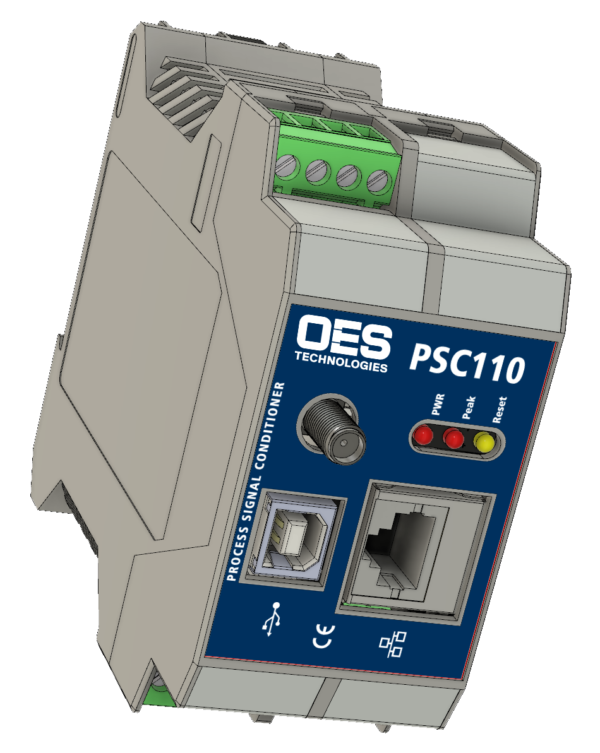

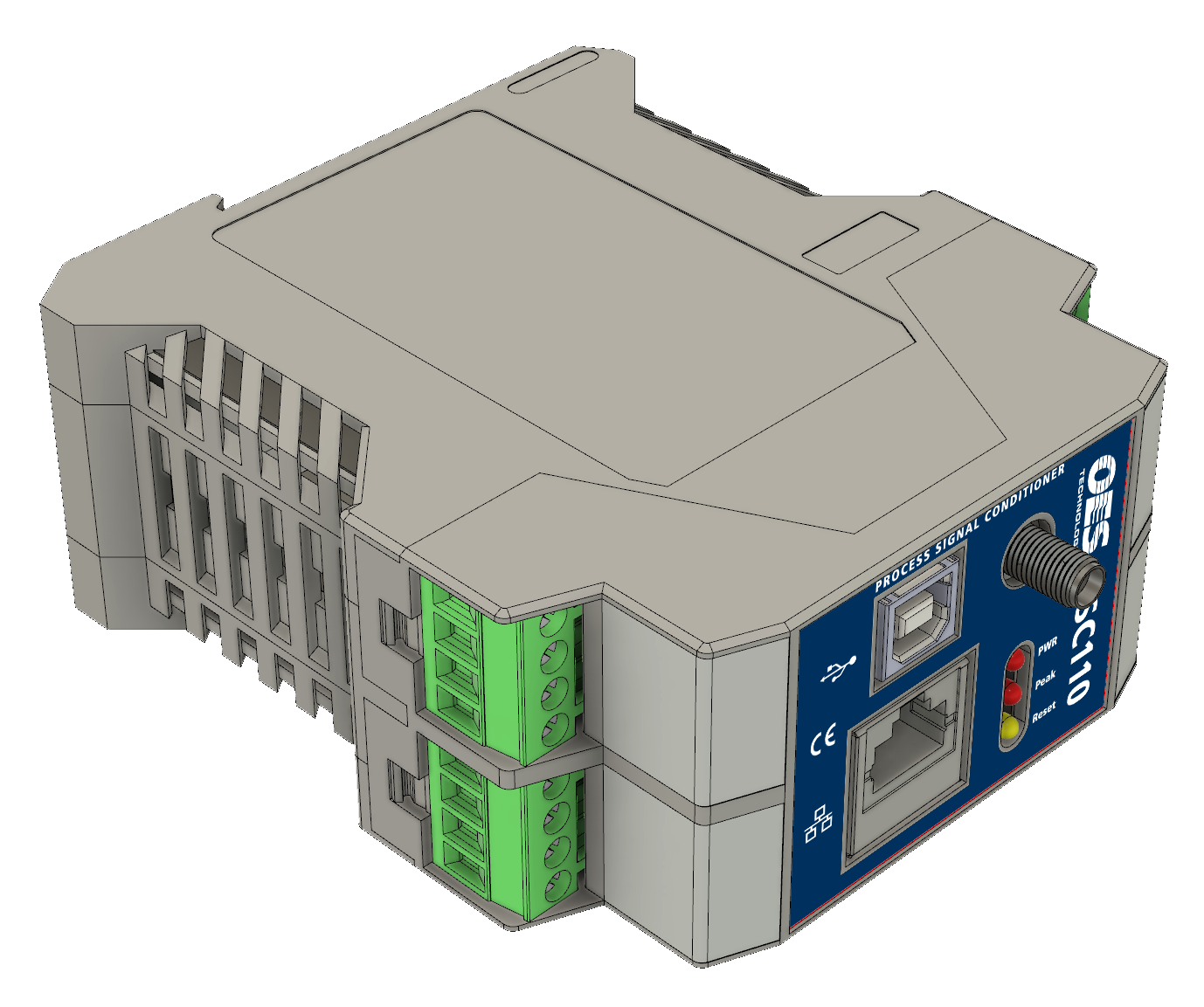

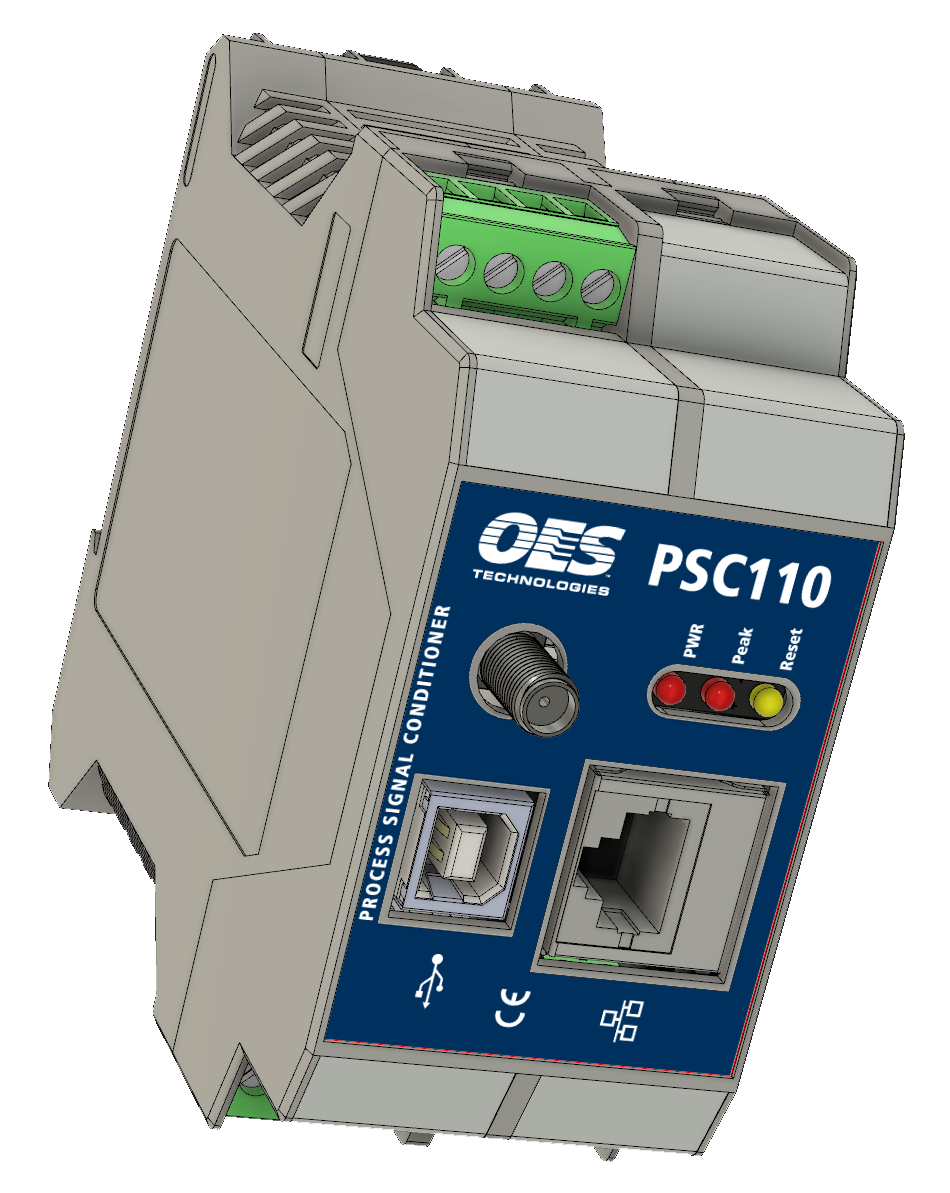

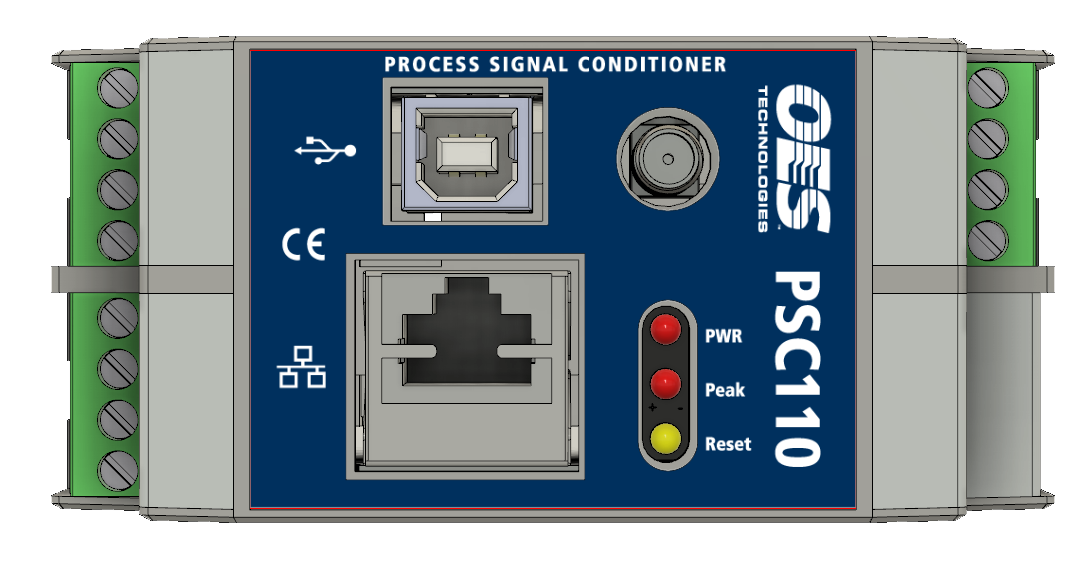

PSC110

Process signal conditioner for process monitoring.

  • Delivers excitation power for ICP and IEPE sensors
  • Provides peak hold and analog output signals
  • Remote reset feature synchronizes with machine cycles
  • Offers AC or DC signal coupling and 7 gain settings
  • DIN rail mounting
  • Setup, configuration, monitor and analyze with PSC110 companion software

Specifications

Dimensions

99.0 x 4.25 x 113.26mm (3.89” x 1.78” x 4.46”)

Supply voltage

24VDC

Communications

1 Ethernet RJ45, 1 USB 2.0

Sensor inputs

Piezo strain,Piezo force ring, PBT force sensor

Mounting

DIN rail

Analysis

Voltage output

Operating temperature

15 to 50C, 60 to 120F

PSC110 is suited for monitoring forces experienced during manufacturing, assembly, on-line processes, quality assurance, or end-of-line product testing.

One year warranty coverage from date of purchase.
